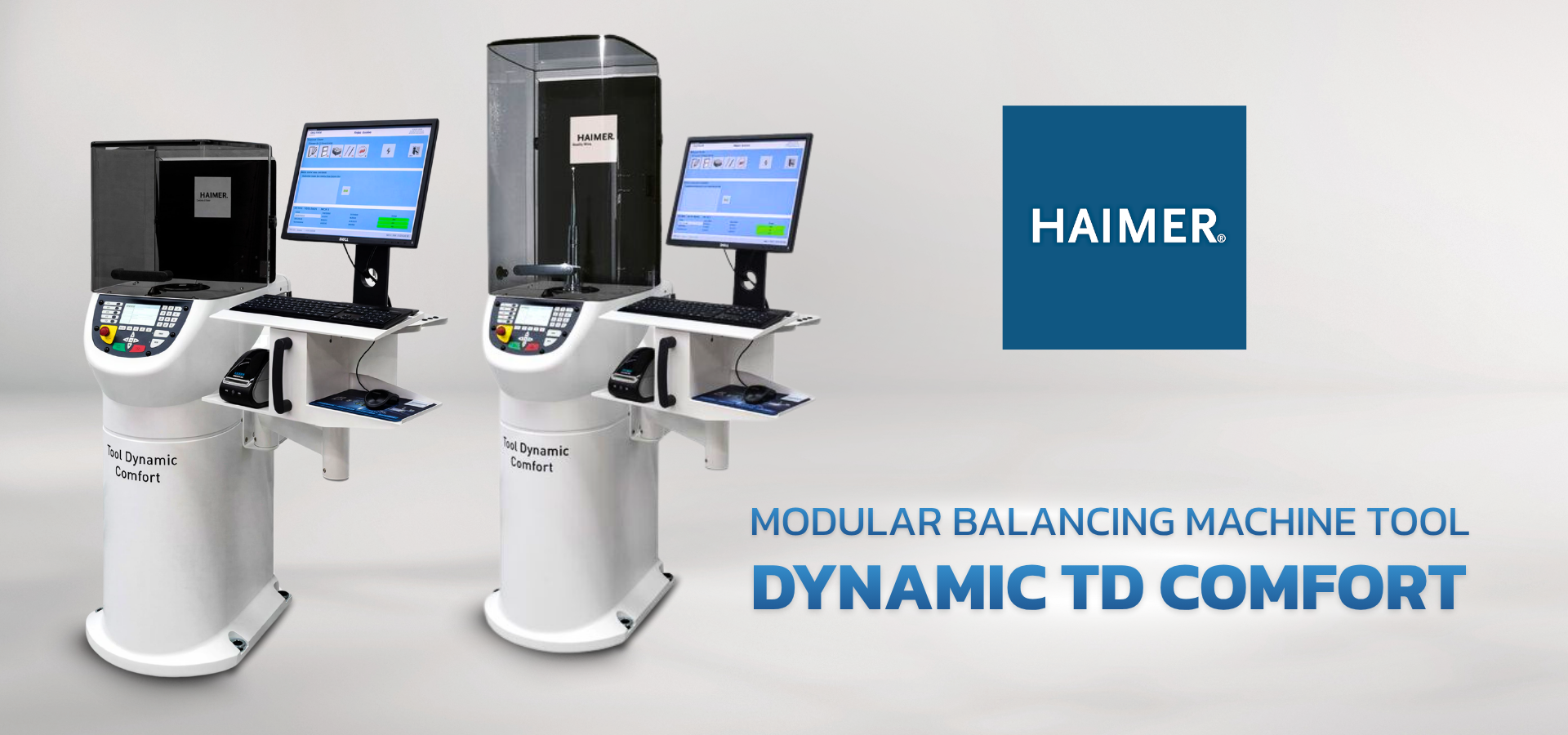

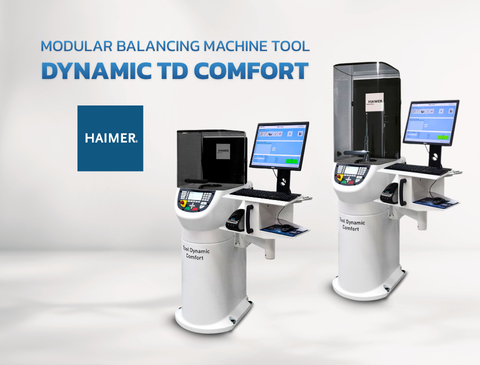

Modular balancing Machine Tool Dynamic TD Comfort

Quality pass

-Measuring and compensation of unbalance on 1 and 2 planes
-Correction of the unbalance by radial drilling, milling, balancing rings or balancing screws
-Comfortable handling via TFT-screen, keyboard and mouse
-Base made polymer concrete for highest measuring accuracy

Balancing machine to balance tool holders on 1 and 2 planes.

If you want to balance frequently and keep the balancing time as short as possible, you should decide on the Tool Dynamic TD Comfort machine. It’s equipped with a PC, keyboard, mouse and monitor. The big screen enables you a fast input of tool data and all the comfort of a graphical user interface. In addition, the software of the machine offers the possibility to correct the unbalance with the help of a milling program what is very common in practice to correct the unbalance.

Picture shows special equipment: Safety hood type 3 for tools with lenghts up to 700 mm.

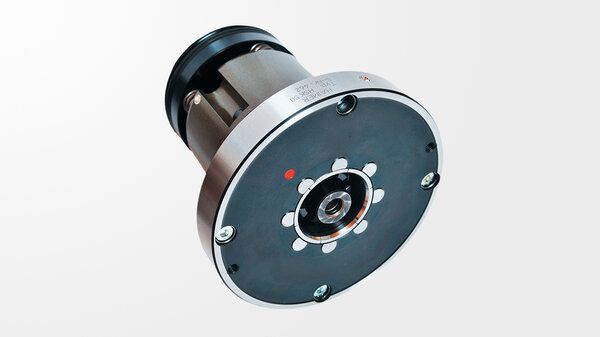

HAIMER balancing adapter with automatic clamping

μm precise clamping for highest measuring accuracy and repeatability

Easy and quickest changing due to compact design. A re-calibration of the machine is not neccessary







Modular balancing Machine Tool Dynamic TD Comfort

Description Norm:HAIMER  Vaiue: metric/ inch
Mass (weight) M 452 kg
Spindle speed   300 - 1100 U/Min
Measuring accuracy   < 0,5 gmm
Power connection   230 / 50 - 60 V / Hz
Power   0,4 kW
Compressed air   6 bar
Maximum tool length   400 mm
Maximum tool diameter Ø 380 mm
Maximum tool weight Ø 30 kg
Maximum tool length (upon request)   700 mm
Maximum tool diameter (upon request)   425 mm
Width B 1100 mm
Height H 1500 mm
Deep T 820 mm





Equipment

Highest measuring accuracy due to heavy base

Integrated user interface for easy handling of the machine

Indication of the exact spindle angle position on display

Indicates the position of unbalance and correction with a laser

Print balancing result on label

Balancing by drilling radially

Balancing by rings or other movable weights

Balancing by rings or other movable weights

Quick and precise measuring of repetition parts (single measuring run)

Measuring and compensation of unbalance in 1 plane (static)

Order no. 80.252.01 Measuring and compensation of unbalance in 2 planes (dynamic unbalance)

Order no. 80.202.00 Enables balancing at predefined positions, e. g. with balancing screws

Order no. 80.217.00 Turn the spindle on the selected angle position and simplifies exact positioning of spindle

Order no. 80.277.00 Storage rack with two integrated drawers for balancing adapters and further accessories

Order no. 80.212.00 Milling program allows correction of unbalance via milling

Order no. 80.245.06 New software with user-friendly graphical interface and touchscreen-control

Order no. 80.228.03 Comfortable tray to place PC-screen and keyboard

Order no. 80.229.02 Comfortable usage via keyboard, mouse)

Languages for user interface for internal display





Equipment options

Order no. 80.228.02.01 Optional desk for printer

Order no. 80.228.02.02.3 Optional holder for external PC (Requires screen holders 80.228.03)

Order no. 80.228.02.04.3 Optional desk for tool scale

Order no. 80.233.00.4 Console for storage of touchscreen, keyboard, mouse, printer, and further accessories

Order no. 80.229.04 Package for comfortable usage via touchscreen for integrated PC (includes sophisticated 19″ touchscreen, keyboard, mouse).

Order no. 80.209.00 Enables specification of the specific weight of the rotor to be balanced, if different from stell

Order no. 80.213.01 Enables balancing of rotors by axial drilling, e. g. for grinding wheels

Order no. 80.218.00 Index balancing of rotors which can not be indexed 180° (e. g. PSC)

Order no. 80.214.00 Printout of a detailed measuring protocol (balancing certificate)

Order no. 80.245.12 User administration with individual allocation of user rights

Order no. 80.245.09 Defined areas that are not allowed for the compensation of the unbalance

Order no. 80.245.10 Calculation of alternative positions, when proposed position not possible

Order no. 80.245.11 Shortened measuring run, if measuring accuracy is sufficient

Order no. 80.232.01 Safety hood for extra long toolholders with max. 700 mm length and max. 400 mm diam. (With second laser marking from top)

Order no. 80.232.02 Safety hood for extra long toolholders with max. 700 mm length and max. 425 mm diam. (With second laser marking from top)

Order no. 80.207.12 Automatic transfer of rotor weight from scale

Order no. 80.245.13 Software to export measuring results

Order no. 91.101.22.00 Customised and related to practice training to enable the full potential of your Tool Dynamic TD ECO/Comfort balancing machine

For the calibration and testing of every balancing machine with the help of a defined mass

Order No. 80.215.05 Label Printer Dymo 550 (on option) Printout of a label with measuring results (short report). USB interface
